| ชื่อแบรนด์: | HUAWEI |

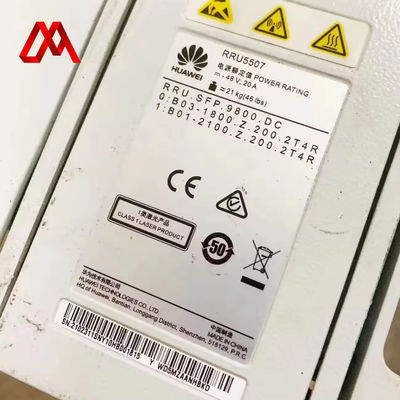

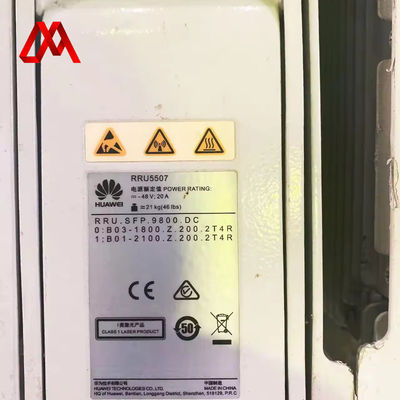

| เลขรุ่น: | RRU5507 |

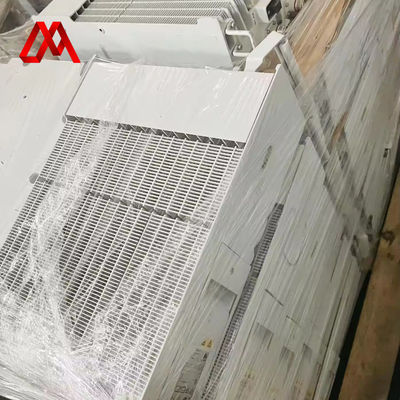

| รายละเอียดการบรรจุ: | โฟมด้านใน+กล่องกระดาษแข็งด้านนอก บรรจุภัณฑ์กรอบไม้ |
| เงื่อนไขการจ่ายเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
รูปนี้แสดงให้เห็นส่วนประกอบของ รูปนี้ ผมอยากแบ่งปันรูปนี้กับคุณ
หน่วยวิทยุระยะไกล (RRU): หน่วยประมวลผลสัญญาณ เครื่องขยายกําลังและตัวส่งสองตัวที่ทํางานเพื่อขยายสัญญาณเพื่อรักษามันจากปัญหาการพังที่เกิดขึ้นกับมันเนื่องจากความสูงของหอคอยหรือเนื่องจากความยาวของสายไฟ.
ฟังก์ชัน
1- ส่งและรับสัญญาณเบสเบนด์
2- ปรับปรุงและลดปรับปรุงสัญญาณคลื่นวิทยุ
3- การประมวลผลข้อมูล
4- เสริมแรงสัญญาณ
ส่วนประกอบของ RRU
บอร์ด 1-TRX และ RX:
-รับผิดชอบในการแปลงตัวพารวยขึ้นและลง
-รับผิดชอบในการปรับปรุงและ demodulation
- ปรับการเพิ่มความช้า
2- เครื่องเสริมพลังงาน:
- รับผิดชอบในการขยายสัญญาณ
3- พลังงานไฟฟ้า:
- ส่งพลังงานไปยังบอร์ด RRU
4-เครื่องรังสีดับเล็กเซอร์การกรอง:
- รับกรองและส่ง duplexer
Huawei RRU ซีรี่ย์
1-RRUรุ่นซีรีส์ 3000
RRU3004, RRU3308v1, RRU3008v2, RRU3168, RRU3201, RRU3203, RRU3220, RRU3220E, RRU3221, RRU3222, RRU3229, RRU3230E, RRU3232, RRU3236E, RRU3240, RRU3249, RRU3251, RRU3252, RRU3253, RRU3256, RRU3259RRU3260, RRU3262, RRU3268, RRU3269, RRU3276, RRU3278, RRU3278u, RRU3279, RRU3281, RRU3668, RRU3810E, RRU3804, RRU3805, RRU3806, RRU3808, RRU3821E, RRU3824, RRU3826, RRU3828, RRU3829, RRU3832, RRU3838RRU3839, RRU3841, RRU3853, RRU3908v1, RRU3908v2, RRU3926, RRU3928, RRU3929, RRU3930E, RRU3936, RRU3938, RRU3939, RRU3942, RRU3952, RRU3952m, RRU3953, RRU3953w, RRU3958, RRU3959, RRU3959a, RRU3959w, RRU3961RRU3962, RRU3965, RUR3971, RRU3971a
2- RRU5000 ซีรี่ย์นางแบบ
RRU5251, RRU5254, RRU5258, RRU5301, RRU5304, RRU5304w, RRU5305, RRU5308, RRU5309, RRU5309w, RRU5336E, RRU5501, RRU5502, RRU5502N, RRU5502w, RRU5505, RRU5505N, RRU5507, RRU5508, RRU5509t, RRU5512,RR5512t, RRU5513, RRU5513t, RRU5513w, RRU5515t, RRU5519et, RRU5810, RRU5818, RRU5836E, RRU5862, RRU5901, RRU5901N, RRU5901W, RRU5903, RRU5903w, RRU5904, RRU5904N, RRU5904w, RRU5905, RRU5905w, RRU5909RRU5909N, RRU5909s, RRU5935E
พลังงานออกและการตั้งค่าตัวนํา
| ตาราง 1 RRU ของซีรีส์ 3000 | ||||
| รูปแบบ RRU | XTXR | ช่วงความถี่ ((MHz) | RATs ที่ได้รับการสนับสนุน | ปริมาตรของอุปกรณ์ |
| RRU3004 | 2T2R | 900 | GSM | RRU3004 |
| 1800 | ||||
| RRU3308v1 | 2T2R | 850 | GSM | RRU3308v1 |
| 900 | ||||
| 1800 | ||||
| 1900 | ||||
| RRU3008v2 | 2T2R | 900 | GSM | RRU3008v2 |
| RRU3168 | 8T8R | 1900 | LTE ((TDD) | RRU3168 |
| RRU3201 | 2T2R | 700 | LTE ((FDD) | RRU3201 |
| 2600 | ||||
| RRU3203 | 2T2R | 700 | LTE ((FDD) | RRU3203 |
| RRU3220 | 2T2R | 800 | LTE ((FDD),LM | RRU3220 |
| RRU3220E | 2T2R | 1800 | LTE ((FDD) | RRU3220E |
| RRU3221 | 2T2R | 2600 | LTE ((FDD) | RRU3221 |
| RRU3222 | 2T2R | 800 | LTE ((FDD),LM | RRU3222 |
| RRU3229 | 2T2R | 2600 | LTE ((FDD) | RRU3229 |
| RRU3230E | 2T2R | 1800 | LTE ((FDD),LTE ((NB-IoT),LM | RRU3230E |
| RRU3232 | 4T4R | 3500 | LTE ((TDD) | RRU3232 |
| RRU3236E | 2T2R | 2300 | LTE ((TDD) | RRU3236E |
| 3500 | ||||
| RRU3240 | 2T4R | 2600 | LTE ((FDD) | RRU3240 |
| RRU3249 | 2T2R | 700 | LTE ((FDD) | RRU3249 |
| RRU3251 | 2T2R | 2300 | LTE ((TDD) | RRU3251 |
| RRU3252 | 4T4R | 2300 | LTE ((TDD) | RRU3252 |
| RRU3253 | 8T8R | 2600 | LTE ((TDD) | RRU3253 |
| RRU3256 | 4T4R | 2300 | LTE ((TDD) | RRU3256 |
| 2600 | ||||
| 3500 | ||||
| RRU3259 | 8T8R | 2600 | LTE ((TDD) | RRU3259 |
| RRU3260 | 2T4R | 2600 | LTE ((FDD) | RRU3260 |
| RRU3262 | 2T4R | 700 | LTE ((FDD),LM,LN ((SUL) | RRU3262 |
| 850 | ||||
| 2600 | ||||
| RRU3268 | 2T2R | 700 | LTE ((FDD),LM | RRU3268 |
| 800 | ||||
| 2600 | ||||
| RRU3269 | 2T2R | 700 | LTE ((FDD),LM | RRU3269 |
| RRU3276 | 4T4R | 2300 | LTE ((TDD) | RRU3276 |
| 2600 | ||||
| RRU3278 | 8T8R | 3500 | LTE ((TDD) | RRU3278 |
| 3650 | ||||
| 3700 | ||||
| RRU3278u | 8T8R | 3500 | LTE ((TDD) | RRU3278u |
| RRU3279 | 8T8R | 2300 | LTE ((TDD) | RRU3279 |
| 2600 | ||||
| RRU3281 | 4T4R | 2600 | LTE ((FDD) | RRU3281 |
| RRU3668 | 2T2R | 450 | LTE ((FDD) | RRU3668 |
| RRU3810E | 1T2R | 850 | UMTS | RRU3810E |
| 1900 | ||||
| 2100 | ||||
| RRU3804 | 1T2R | 850 | UMTS | RRU3804 |
| 1900 | ||||
| AWS | ||||
| 2100 | ||||
| RRU3805 | 2T2R | 850 | UMTS | RRU3805 |
| 1900 | ||||
| RRU3806 | 1T2R | 2100 | UMTS | RRU3806 |
| RRU3808 | 2T2R | AWS | UMTS,LTE ((FDD),UL | RRU3808 |
| 2100 | ||||
| RRU3821E | 2T2R | 1800 | LTE ((FDD) | RRU3821E |
| RRU3824 | 1T2R | 2100 | UMTS | RRU3824 |
| RRU3826 | 1T2R | 2100 | UMTS | RRU3826 |
| RRU3828 | 2T2R | 2100 | UMTS | RRU3828 |
| RRU3829 | 2T2R | 2100 | UMTS | RRU3829 |
| RRU3832 | 2T4R | AWS | UMTS,LTE ((FDD),UL | RRU3832 |
| 2100 | ||||
| RRU3838 | 2T2R | 2100 | UMTS | RRU3838 |
| RRU3839 | 2T2R | 2100 | UMTS | RRU3839 |
| RRU3841 | 4T4R | AWS | LTE ((FDD),LM | RRU3841 |
| RRU3853 | 2T4R | UMTS | UMTS | RRU3853 |
| RRU3908v1 | 2T2R | 850 | GSM,UMTS | RRU3908v1 |
| 900 | ||||
| 1800 | ||||
| 1900 | ||||
| RRU3908v2 | 2T2R | 850 | GSM,UMTS,GU | RRU3908v2 |
| 900 | ||||
| RRU3926 | 1T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3926 |
| 1800 | ||||
| RRU3928 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3928 |
| RRU3929 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3929 |
| RRU3930E | 2T2R | 2100 | UMTS,LTE ((FDD),UL | RRU3930E |
| RRU3936 | 1T2R | 850 | GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3936 |
| 900 | ||||
| 1800 | ||||
| 1900 | ||||
| RRU3938 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3938 |
| 1800 | ||||
| RRU3939 | 2T2R | 1800 | GSM,LTE ((FDD),GL,LM,GLM | RRU3939 |
| RRU3942 | 2T4R | 850 | GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3942 |
| 1900 | ||||
| RRU3952 | 2T4R | 850 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3952 |
| 2100 | ||||
| RRU3952m | 2T4R | 1800+2100 | 1800MHz: GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL) | RRU3952m |
| 2100+1800 | 2100MHz: UMTS,LTE ((FDD),UL | |||
| RRU3953 | 2T4R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3953 |
| 1800 | ||||
| 1900 | ||||
| 2100 | ||||
| RRU3953w | 2T4R | 1800 | GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL) | RRU3953w |
| RRU3958 | 2T2R | 2100 | UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL) | RRU3958 |
| RRU3959 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3959 |
| 1800 | ||||
| 2100 | ||||
| RRU3959a | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3959a |
| 1800 | ||||
| 2100 | ||||
| RRU3959w | 2T2R | 1800 | GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL) | RRU3959w |
| RRU3961 | 2T2R | 800+900EGSM | 800MHz:LTE ((FDD),LTE ((NB-IoT),LM | RRU3961 |
| 900 EGSM:GSM,UMTS,GU | ||||
| 800MHz+900 EGSM:GL,UL,GUL | ||||
| RRU3962 | 2T4R | 1800+2100 | RRU3962 | |
| 1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL) | ||||
| 2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL) | ||||
| 1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL) | ||||
| RRU3965 | 2T2R | 800+900EGSM | 800MHz:LTE ((FDD),LM,LN ((SUL) | RRU3965 |
| 900 EGSM:UMTS,LTE ((FDD),GU,GL,UL,GUL,GUM,GULM | ||||
| 800MHz+900 EGSM:LTE(FDD),GL,UL,GUL,GULM,LN(SUL),GLN(SUL),ULN(SUL),GUL | ||||
| RUR3971 | 4T4R | 1800 | LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL) | RUR3971 |
| 1900 | ||||
| AWS | ||||
| 2100 | ||||
| RRU3971a | 4T4R | 1800 | LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL) | RRU3971a |
| ตาราง 2 RRU ของซีรีส์ 5000 | ||||
| รูปแบบ RRU | XTXR | ช่วงความถี่ ((MHz) | RATs ที่ได้รับการสนับสนุน | ปริมาตรของอุปกรณ์ |
| RRU5251 | 4T4R | 2300 | LTE ((TDD) | RRU5251 |
| RRU5254 | 8T8R | 2600 | LTE ((TDD), NR ((TDD) | RRU5254 |
| 4T4R | 2300+2600 | LTE ((TDD),NR ((TDD),TN ((TDD) | ||
| RRU5258 | 8T8R | 2300 | LTE ((TDD),NR ((TDD),TN ((TDD) | RRU5258 |
| 2600 | ||||
| 3500 | ||||
| 3650 | ||||
| 3700 | ||||
| RRU5301 | 4T4R | 800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5301 |
| 4T0R | 1400 | LTE ((FDD) | ||
| 4T4R | 2600 | LTE ((FDD),NR ((FDD),LN ((FDD) | ||
| RRU5304 | 4T4R | 2600 | LTE ((FDD),NR ((FDD),LN ((FDD) | RRU5304 |
| RRU5304w | 4T4R | 700 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5304w |
| 4T4R | 2600 | LTE ((FDD),NR ((FDD),LN ((FDD) | ||
| RRU5305 | 2T0R | 1400 | LTE ((FDD) | RRU5305 |
| RRU5308 | 2T2R | 800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5308 |
| RRU5309 | 2T2R | 700 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5309 |
| 800 | ||||
| RRU5309w | 2T2R | 800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5309w |
| RRU5336E | 4T4R | 2600 | LTE ((FDD) | RRU5336E |
| RRU5501 | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5501 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),GULMN(FDD) | ||||
| RRU5502 | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5502 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| 4T4R | AWS+PCS | AWS: UMTS,LTE ((FDD),UL,LM,LN ((SUL),ULN ((SUL),NR ((FDD),UN ((FDD),LN ((FDD),ULN ((FDD) | ||
| PCS:UMTS,LTE(FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD) | ||||
| AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD) | ||||
| RRU5502N | 4T4R | 1800+2100 | 1800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5502N |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULM(FDD) | ||||
| RRU5502w | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5502w |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5505 | 2T2R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5505 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5505N | 2T2R | 1800+2100 | 1800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5505N |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULM(FDD) | ||||
| RRU5507 | 2T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5507 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5508 | 2T4R | 700+850 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5508 |
| 850MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),LN ((FDD),GN ((FDD),UN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+850MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 2T4R | 700+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 2T4R | 800+900 | 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 2T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD | ||
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD | ||||
| RR5509t | 2T4R | 700+800+900 | 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RR5509t |
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5512 | 4T4R | 700+850 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5512 |
| 850MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD | ||||
| 700MHz+850MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 4T4R | 700+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||
| 900MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| RR5512t | 4T4R | 700+800+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RR5512t |
| 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 900MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD | ||||
| 700MHz+800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5513 | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5513 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5513t | 4T4R | 1800+2100+2600 | 1800MHz:LTE ((FDD),GL,NR ((FDD),GN ((FDD),LN ((SUL),GLN ((SUL),LN ((FDD),GLN ((FDD),LM ((FDD),GLM ((FDD),LMN ((FDD),GLM ((FDD) | RRU5513t |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 2600MHz:LTE ((FDD),NR ((FDD),LN ((FDD) | ||||
| RRU5513w | 4T4R | AWS+PCS | AWS: UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL),NR ((FDD),UN ((FDD),LN ((FDD),ULN ((FDD) | RRU5513w |
| PCS:UMTS,LTE ((FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GLN ((FDD),ULN ((FDD),GULN ((FDD),LMN ((FDD),GLMN ((FDD) | ||||
| AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5515t | 2T2R | 700+800+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5515t |
| 800MHz:LTE ((FDD),LM,LN ((SUL) | ||||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+800MHz:LTE ((FDD),LM,NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5519et | 2T4R | 700+800+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5519et |
| 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5810 | 8T8R | 3600 | LTE ((TDD),NR ((TDD),TN ((TDD) | RRU5810 |
| RRU5818 | 8T8R | 2300 | LTE ((TDD),NR ((TDD),TN ((TDD) | RRU5818 |
| 8T8R | 2600 | LTE ((TDD) | ||
| 8T8R | 3500 | LTE ((TDD),NR ((TDD),TN ((TDD) | ||
| RRU5836E | 4T4R | 3500 | LTE ((TDD), NR ((TDD) | RRU5836E |
| 3700 | ||||
| RRU5862 | 1800MHz | 1800+2100 | 1800MHz:LTE ((FDD),GL,LM,GLM | RRU5862 |
| GSM: 4T4R | 2100MHz: UMTS,LTE ((FDD),UL | |||
| LTE ((FDD): 8T8R | 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM | |||
| 2100MHz: | ||||
| UMTS: 2T4R | ||||
| LTE ((FDD): 8T8R | ||||
| RRU5901 | 4T4R | 1800 | LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD) | RRU5901 |
| 4T4R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| AWS | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | |||
| RRU5901N | 4T4R | 1800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5901N |
| RRU5901W | 4T4R | 1800 | GSM,LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | RRU5901W |
| RRU5903 | 2T4R | 850 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GLM(FDD) | RRU5903 |
| 2T4R | 900 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),GUMN(FDD) | ||
| 2T4R | 1900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,UM,LM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD) | ||
| RRU5903w | 2T4R | 850 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),UMN(FDD),GLM(FDD) | RRU5903w |
| RRU5904 | 4T4R | 1800 | GSM,LTE(FDD),GL,LTE(NB-IoT),GM,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),MN(FDD),LMN(FDD | RRU5904 |
| 4T4R | 2100 | UMTS,LTE(FDD),UL,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5904N | 4T4R | 1800 | LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD),LMN (FDD) | RRU5904N |
| RRU5904w | 4T4R | 850 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),UMN(FDD),GLM(FDD) | RRU5904w |
| 4T4R | 1800 | GSM,LTE(FDD),GL,LTE(NB-IoT),GM,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),MN(FDD),GMN(FDD),LMN(FDD),GLMN(FDD | ||
| 4T4R | 1900 | UMTS,LTE ((FDD),GU,GL,UL,GUL,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD) | ||
| RRU5905 | 2T2R | 900 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),GUMN(FDD) | RRU5905 |
| 2T2R | 1800 | GSM,LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | ||
| 2T2R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5905w | 2T2R | 1800 | GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | RRU5905w |
| RRU5909 | 2T2R | 700 | LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5909 |
| 2T2R | 900 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),GUMN(FDD) | ||
| 2T2R | 1800 | GSM,LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | ||
| 2T2R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5909N | 2T2R | 1800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5909N |
| RRU5909s | 2T2R | 1800 | LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD) | RRU5909s |
| 2T2R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5935E | 2T2R | 1800+2100 | 1800MHz:LTE ((FDD),GL,LM,GLM,NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD),GLMN ((FDD) | RRU5935E |
| 2100MHz: UMTS,LTE(FDD),UL,NR(FDD),UN(FDD),LN(FDD),ULN(FDD) 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
|
| ชื่อแบรนด์: | HUAWEI |

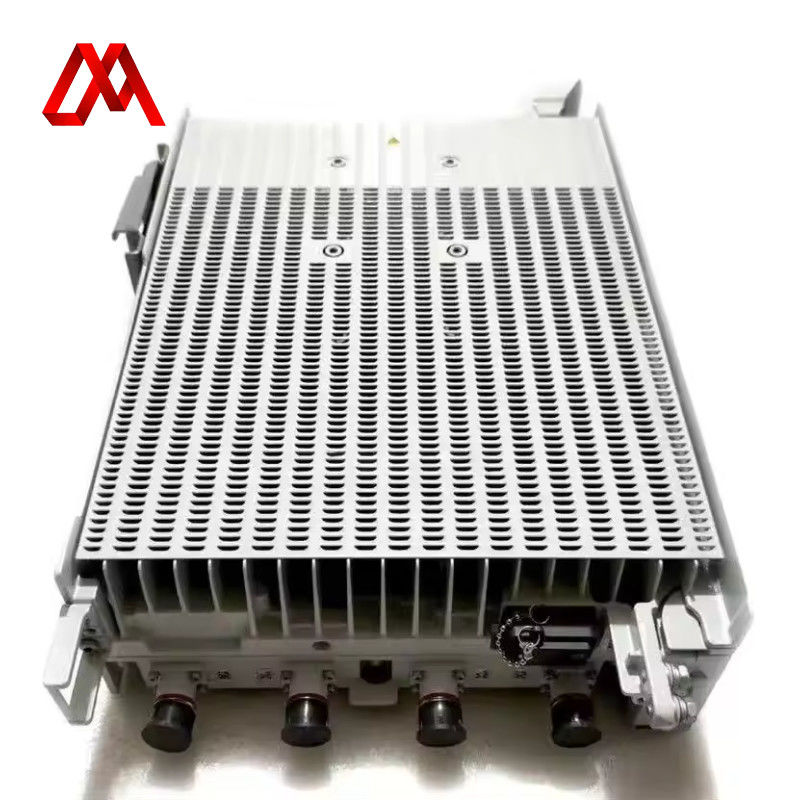

| เลขรุ่น: | RRU5507 |
| รายละเอียดการบรรจุ: | โฟมด้านใน+กล่องกระดาษแข็งด้านนอก บรรจุภัณฑ์กรอบไม้ |
| เงื่อนไขการจ่ายเงิน: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
รูปนี้แสดงให้เห็นส่วนประกอบของ รูปนี้ ผมอยากแบ่งปันรูปนี้กับคุณ
หน่วยวิทยุระยะไกล (RRU): หน่วยประมวลผลสัญญาณ เครื่องขยายกําลังและตัวส่งสองตัวที่ทํางานเพื่อขยายสัญญาณเพื่อรักษามันจากปัญหาการพังที่เกิดขึ้นกับมันเนื่องจากความสูงของหอคอยหรือเนื่องจากความยาวของสายไฟ.
ฟังก์ชัน
1- ส่งและรับสัญญาณเบสเบนด์
2- ปรับปรุงและลดปรับปรุงสัญญาณคลื่นวิทยุ
3- การประมวลผลข้อมูล
4- เสริมแรงสัญญาณ
ส่วนประกอบของ RRU
บอร์ด 1-TRX และ RX:
-รับผิดชอบในการแปลงตัวพารวยขึ้นและลง
-รับผิดชอบในการปรับปรุงและ demodulation
- ปรับการเพิ่มความช้า
2- เครื่องเสริมพลังงาน:
- รับผิดชอบในการขยายสัญญาณ
3- พลังงานไฟฟ้า:
- ส่งพลังงานไปยังบอร์ด RRU
4-เครื่องรังสีดับเล็กเซอร์การกรอง:
- รับกรองและส่ง duplexer
Huawei RRU ซีรี่ย์
1-RRUรุ่นซีรีส์ 3000
RRU3004, RRU3308v1, RRU3008v2, RRU3168, RRU3201, RRU3203, RRU3220, RRU3220E, RRU3221, RRU3222, RRU3229, RRU3230E, RRU3232, RRU3236E, RRU3240, RRU3249, RRU3251, RRU3252, RRU3253, RRU3256, RRU3259RRU3260, RRU3262, RRU3268, RRU3269, RRU3276, RRU3278, RRU3278u, RRU3279, RRU3281, RRU3668, RRU3810E, RRU3804, RRU3805, RRU3806, RRU3808, RRU3821E, RRU3824, RRU3826, RRU3828, RRU3829, RRU3832, RRU3838RRU3839, RRU3841, RRU3853, RRU3908v1, RRU3908v2, RRU3926, RRU3928, RRU3929, RRU3930E, RRU3936, RRU3938, RRU3939, RRU3942, RRU3952, RRU3952m, RRU3953, RRU3953w, RRU3958, RRU3959, RRU3959a, RRU3959w, RRU3961RRU3962, RRU3965, RUR3971, RRU3971a
2- RRU5000 ซีรี่ย์นางแบบ
RRU5251, RRU5254, RRU5258, RRU5301, RRU5304, RRU5304w, RRU5305, RRU5308, RRU5309, RRU5309w, RRU5336E, RRU5501, RRU5502, RRU5502N, RRU5502w, RRU5505, RRU5505N, RRU5507, RRU5508, RRU5509t, RRU5512,RR5512t, RRU5513, RRU5513t, RRU5513w, RRU5515t, RRU5519et, RRU5810, RRU5818, RRU5836E, RRU5862, RRU5901, RRU5901N, RRU5901W, RRU5903, RRU5903w, RRU5904, RRU5904N, RRU5904w, RRU5905, RRU5905w, RRU5909RRU5909N, RRU5909s, RRU5935E
พลังงานออกและการตั้งค่าตัวนํา
| ตาราง 1 RRU ของซีรีส์ 3000 | ||||
| รูปแบบ RRU | XTXR | ช่วงความถี่ ((MHz) | RATs ที่ได้รับการสนับสนุน | ปริมาตรของอุปกรณ์ |
| RRU3004 | 2T2R | 900 | GSM | RRU3004 |
| 1800 | ||||
| RRU3308v1 | 2T2R | 850 | GSM | RRU3308v1 |
| 900 | ||||
| 1800 | ||||
| 1900 | ||||
| RRU3008v2 | 2T2R | 900 | GSM | RRU3008v2 |
| RRU3168 | 8T8R | 1900 | LTE ((TDD) | RRU3168 |
| RRU3201 | 2T2R | 700 | LTE ((FDD) | RRU3201 |
| 2600 | ||||
| RRU3203 | 2T2R | 700 | LTE ((FDD) | RRU3203 |
| RRU3220 | 2T2R | 800 | LTE ((FDD),LM | RRU3220 |
| RRU3220E | 2T2R | 1800 | LTE ((FDD) | RRU3220E |
| RRU3221 | 2T2R | 2600 | LTE ((FDD) | RRU3221 |
| RRU3222 | 2T2R | 800 | LTE ((FDD),LM | RRU3222 |
| RRU3229 | 2T2R | 2600 | LTE ((FDD) | RRU3229 |
| RRU3230E | 2T2R | 1800 | LTE ((FDD),LTE ((NB-IoT),LM | RRU3230E |
| RRU3232 | 4T4R | 3500 | LTE ((TDD) | RRU3232 |
| RRU3236E | 2T2R | 2300 | LTE ((TDD) | RRU3236E |
| 3500 | ||||
| RRU3240 | 2T4R | 2600 | LTE ((FDD) | RRU3240 |
| RRU3249 | 2T2R | 700 | LTE ((FDD) | RRU3249 |
| RRU3251 | 2T2R | 2300 | LTE ((TDD) | RRU3251 |
| RRU3252 | 4T4R | 2300 | LTE ((TDD) | RRU3252 |
| RRU3253 | 8T8R | 2600 | LTE ((TDD) | RRU3253 |
| RRU3256 | 4T4R | 2300 | LTE ((TDD) | RRU3256 |
| 2600 | ||||
| 3500 | ||||
| RRU3259 | 8T8R | 2600 | LTE ((TDD) | RRU3259 |
| RRU3260 | 2T4R | 2600 | LTE ((FDD) | RRU3260 |
| RRU3262 | 2T4R | 700 | LTE ((FDD),LM,LN ((SUL) | RRU3262 |
| 850 | ||||
| 2600 | ||||
| RRU3268 | 2T2R | 700 | LTE ((FDD),LM | RRU3268 |
| 800 | ||||
| 2600 | ||||
| RRU3269 | 2T2R | 700 | LTE ((FDD),LM | RRU3269 |
| RRU3276 | 4T4R | 2300 | LTE ((TDD) | RRU3276 |
| 2600 | ||||
| RRU3278 | 8T8R | 3500 | LTE ((TDD) | RRU3278 |
| 3650 | ||||
| 3700 | ||||
| RRU3278u | 8T8R | 3500 | LTE ((TDD) | RRU3278u |
| RRU3279 | 8T8R | 2300 | LTE ((TDD) | RRU3279 |
| 2600 | ||||
| RRU3281 | 4T4R | 2600 | LTE ((FDD) | RRU3281 |
| RRU3668 | 2T2R | 450 | LTE ((FDD) | RRU3668 |
| RRU3810E | 1T2R | 850 | UMTS | RRU3810E |
| 1900 | ||||
| 2100 | ||||
| RRU3804 | 1T2R | 850 | UMTS | RRU3804 |
| 1900 | ||||
| AWS | ||||
| 2100 | ||||
| RRU3805 | 2T2R | 850 | UMTS | RRU3805 |
| 1900 | ||||
| RRU3806 | 1T2R | 2100 | UMTS | RRU3806 |
| RRU3808 | 2T2R | AWS | UMTS,LTE ((FDD),UL | RRU3808 |
| 2100 | ||||
| RRU3821E | 2T2R | 1800 | LTE ((FDD) | RRU3821E |
| RRU3824 | 1T2R | 2100 | UMTS | RRU3824 |
| RRU3826 | 1T2R | 2100 | UMTS | RRU3826 |
| RRU3828 | 2T2R | 2100 | UMTS | RRU3828 |
| RRU3829 | 2T2R | 2100 | UMTS | RRU3829 |
| RRU3832 | 2T4R | AWS | UMTS,LTE ((FDD),UL | RRU3832 |
| 2100 | ||||
| RRU3838 | 2T2R | 2100 | UMTS | RRU3838 |
| RRU3839 | 2T2R | 2100 | UMTS | RRU3839 |
| RRU3841 | 4T4R | AWS | LTE ((FDD),LM | RRU3841 |
| RRU3853 | 2T4R | UMTS | UMTS | RRU3853 |
| RRU3908v1 | 2T2R | 850 | GSM,UMTS | RRU3908v1 |
| 900 | ||||
| 1800 | ||||
| 1900 | ||||
| RRU3908v2 | 2T2R | 850 | GSM,UMTS,GU | RRU3908v2 |
| 900 | ||||
| RRU3926 | 1T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3926 |
| 1800 | ||||
| RRU3928 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3928 |
| RRU3929 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3929 |
| RRU3930E | 2T2R | 2100 | UMTS,LTE ((FDD),UL | RRU3930E |
| RRU3936 | 1T2R | 850 | GSM,UMTS,GU,LTE ((FDD),GL,UL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3936 |
| 900 | ||||
| 1800 | ||||
| 1900 | ||||
| RRU3938 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3938 |
| 1800 | ||||
| RRU3939 | 2T2R | 1800 | GSM,LTE ((FDD),GL,LM,GLM | RRU3939 |
| RRU3942 | 2T4R | 850 | GSM,UMTS,LTE ((FDD),GU,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3942 |
| 1900 | ||||
| RRU3952 | 2T4R | 850 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM | RRU3952 |
| 2100 | ||||
| RRU3952m | 2T4R | 1800+2100 | 1800MHz: GSM,LTE ((FDD),GL,LM,LN ((SUL),GLN ((SUL) | RRU3952m |
| 2100+1800 | 2100MHz: UMTS,LTE ((FDD),UL | |||
| RRU3953 | 2T4R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3953 |
| 1800 | ||||
| 1900 | ||||
| 2100 | ||||
| RRU3953w | 2T4R | 1800 | GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL) | RRU3953w |
| RRU3958 | 2T2R | 2100 | UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL) | RRU3958 |
| RRU3959 | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3959 |
| 1800 | ||||
| 2100 | ||||
| RRU3959a | 2T2R | 900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,LTE ((NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM | RRU3959a |
| 1800 | ||||
| 2100 | ||||
| RRU3959w | 2T2R | 1800 | GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL) | RRU3959w |
| RRU3961 | 2T2R | 800+900EGSM | 800MHz:LTE ((FDD),LTE ((NB-IoT),LM | RRU3961 |
| 900 EGSM:GSM,UMTS,GU | ||||
| 800MHz+900 EGSM:GL,UL,GUL | ||||
| RRU3962 | 2T4R | 1800+2100 | RRU3962 | |
| 1800 MHz: LTE FDD, GL, LN (SUL), GLN (SUL) | ||||
| 2100 MHz: UMTS, LTE FDD, UL, LN (SUL), ULN (SUL) | ||||
| 1800 MHz+2100 MHz: LTE FDD, GL, UL, GUL, LN (SUL), GLN (SUL), ULN (SUL), GULN (SUL) | ||||
| RRU3965 | 2T2R | 800+900EGSM | 800MHz:LTE ((FDD),LM,LN ((SUL) | RRU3965 |
| 900 EGSM:UMTS,LTE ((FDD),GU,GL,UL,GUL,GUM,GULM | ||||
| 800MHz+900 EGSM:LTE(FDD),GL,UL,GUL,GULM,LN(SUL),GLN(SUL),ULN(SUL),GUL | ||||
| RUR3971 | 4T4R | 1800 | LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL) | RUR3971 |
| 1900 | ||||
| AWS | ||||
| 2100 | ||||
| RRU3971a | 4T4R | 1800 | LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL) | RRU3971a |
| ตาราง 2 RRU ของซีรีส์ 5000 | ||||
| รูปแบบ RRU | XTXR | ช่วงความถี่ ((MHz) | RATs ที่ได้รับการสนับสนุน | ปริมาตรของอุปกรณ์ |
| RRU5251 | 4T4R | 2300 | LTE ((TDD) | RRU5251 |
| RRU5254 | 8T8R | 2600 | LTE ((TDD), NR ((TDD) | RRU5254 |
| 4T4R | 2300+2600 | LTE ((TDD),NR ((TDD),TN ((TDD) | ||
| RRU5258 | 8T8R | 2300 | LTE ((TDD),NR ((TDD),TN ((TDD) | RRU5258 |
| 2600 | ||||
| 3500 | ||||
| 3650 | ||||
| 3700 | ||||
| RRU5301 | 4T4R | 800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5301 |
| 4T0R | 1400 | LTE ((FDD) | ||
| 4T4R | 2600 | LTE ((FDD),NR ((FDD),LN ((FDD) | ||
| RRU5304 | 4T4R | 2600 | LTE ((FDD),NR ((FDD),LN ((FDD) | RRU5304 |
| RRU5304w | 4T4R | 700 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5304w |
| 4T4R | 2600 | LTE ((FDD),NR ((FDD),LN ((FDD) | ||
| RRU5305 | 2T0R | 1400 | LTE ((FDD) | RRU5305 |
| RRU5308 | 2T2R | 800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5308 |
| RRU5309 | 2T2R | 700 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5309 |
| 800 | ||||
| RRU5309w | 2T2R | 800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5309w |
| RRU5336E | 4T4R | 2600 | LTE ((FDD) | RRU5336E |
| RRU5501 | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5501 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),GULMN(FDD) | ||||
| RRU5502 | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5502 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| 4T4R | AWS+PCS | AWS: UMTS,LTE ((FDD),UL,LM,LN ((SUL),ULN ((SUL),NR ((FDD),UN ((FDD),LN ((FDD),ULN ((FDD) | ||
| PCS:UMTS,LTE(FDD),GU,GL,UL,LM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD) | ||||
| AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD) | ||||
| RRU5502N | 4T4R | 1800+2100 | 1800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5502N |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULM(FDD) | ||||
| RRU5502w | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5502w |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5505 | 2T2R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5505 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5505N | 2T2R | 1800+2100 | 1800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5505N |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),UL,LM,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD),LMN(FDD),ULM(FDD) | ||||
| RRU5507 | 2T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5507 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5508 | 2T4R | 700+850 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5508 |
| 850MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),LN ((FDD),GN ((FDD),UN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+850MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 2T4R | 700+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 2T4R | 800+900 | 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 2T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD | ||
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD | ||||
| RR5509t | 2T4R | 700+800+900 | 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RR5509t |
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5512 | 4T4R | 700+850 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5512 |
| 850MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),LN(FDD),GN(FDD),UN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD | ||||
| 700MHz+850MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| 4T4R | 700+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||
| 900MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDDULMN ((FDD),GULMN ((FDD) | ||||
| RR5512t | 4T4R | 700+800+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RR5512t |
| 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 900MHz: UMTS,LTE(FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD | ||||
| 700MHz+800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5513 | 4T4R | 1800+2100 | 1800MHz:LTE(FDD),GL,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),LMN(FDD),GLMN(FDD | RRU5513 |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5513t | 4T4R | 1800+2100+2600 | 1800MHz:LTE ((FDD),GL,NR ((FDD),GN ((FDD),LN ((SUL),GLN ((SUL),LN ((FDD),GLN ((FDD),LM ((FDD),GLM ((FDD),LMN ((FDD),GLM ((FDD) | RRU5513t |
| 2100MHz: UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||||
| 2600MHz:LTE ((FDD),NR ((FDD),LN ((FDD) | ||||
| RRU5513w | 4T4R | AWS+PCS | AWS: UMTS,LTE ((FDD),UL,LN ((SUL),ULN ((SUL),NR ((FDD),UN ((FDD),LN ((FDD),ULN ((FDD) | RRU5513w |
| PCS:UMTS,LTE ((FDD),GU,GL,UL,GUL,LM,GLM,ULM,GULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GLN ((FDD),ULN ((FDD),GULN ((FDD),LMN ((FDD),GLMN ((FDD) | ||||
| AWS+PCS: UMTS,LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| RRU5515t | 2T2R | 700+800+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5515t |
| 800MHz:LTE ((FDD),LM,LN ((SUL) | ||||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+800MHz:LTE ((FDD),LM,NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5519et | 2T4R | 700+800+900 | 700MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | RRU5519et |
| 800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 900MHz: GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,GM,UM,LM,GUM,GLM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD),MN ((FDD),GMN ((FDD),UMN ((FDD) | ||||
| 700MHz+800MHz:LTE ((FDD),LM,LN ((SUL),NR ((FDD),LN ((FDD),LMN ((FDD) | ||||
| 700MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD) | ||||
| 800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD | ||||
| 700MHz+800MHz+900MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,LN(SUL),GLN(SUL),ULN(SUL),GULN(SUL),NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),LMN(FDD),GLM(FDD),ULMGULMN ((FDD) | ||||
| RRU5810 | 8T8R | 3600 | LTE ((TDD),NR ((TDD),TN ((TDD) | RRU5810 |
| RRU5818 | 8T8R | 2300 | LTE ((TDD),NR ((TDD),TN ((TDD) | RRU5818 |
| 8T8R | 2600 | LTE ((TDD) | ||
| 8T8R | 3500 | LTE ((TDD),NR ((TDD),TN ((TDD) | ||
| RRU5836E | 4T4R | 3500 | LTE ((TDD), NR ((TDD) | RRU5836E |
| 3700 | ||||
| RRU5862 | 1800MHz | 1800+2100 | 1800MHz:LTE ((FDD),GL,LM,GLM | RRU5862 |
| GSM: 4T4R | 2100MHz: UMTS,LTE ((FDD),UL | |||
| LTE ((FDD): 8T8R | 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM | |||
| 2100MHz: | ||||
| UMTS: 2T4R | ||||
| LTE ((FDD): 8T8R | ||||
| RRU5901 | 4T4R | 1800 | LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD) | RRU5901 |
| 4T4R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| AWS | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | |||
| RRU5901N | 4T4R | 1800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5901N |
| RRU5901W | 4T4R | 1800 | GSM,LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | RRU5901W |
| RRU5903 | 2T4R | 850 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GLM(FDD) | RRU5903 |
| 2T4R | 900 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),GUMN(FDD) | ||
| 2T4R | 1900 | GSM,UMTS,LTE ((FDD),GU,GL,UL,GUL,UM,LM,ULM,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD) | ||
| RRU5903w | 2T4R | 850 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),UMN(FDD),GLM(FDD) | RRU5903w |
| RRU5904 | 4T4R | 1800 | GSM,LTE(FDD),GL,LTE(NB-IoT),GM,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),MN(FDD),LMN(FDD | RRU5904 |
| 4T4R | 2100 | UMTS,LTE(FDD),UL,ULM,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5904N | 4T4R | 1800 | LTE (FDD),LTE (NB-IoT),LM,LN (SUL),NR (FDD),LN (FDD),MN (FDD),LMN (FDD) | RRU5904N |
| RRU5904w | 4T4R | 850 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GLM,ULM,GUM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),UMN(FDD),GLM(FDD) | RRU5904w |
| 4T4R | 1800 | GSM,LTE(FDD),GL,LTE(NB-IoT),GM,LM,GLM,LN(SUL),GLN(SUL),NR(FDD),GN(FDD),LN(FDD),GLN(FDD),MN(FDD),GMN(FDD),LMN(FDD),GLMN(FDD | ||
| 4T4R | 1900 | UMTS,LTE ((FDD),GU,GL,UL,GUL,NR ((FDD),GN ((FDD),UN ((FDD),LN ((FDD),GUN ((FDD),GLN ((FDD),ULN ((FDD) | ||
| RRU5905 | 2T2R | 900 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),GUMN(FDD) | RRU5905 |
| 2T2R | 1800 | GSM,LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | ||
| 2T2R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5905w | 2T2R | 1800 | GSM,LTE ((FDD),GL,GM,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | RRU5905w |
| RRU5909 | 2T2R | 700 | LTE (FDD),LM,NR (SUL),LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5909 |
| 2T2R | 900 | GSM,UMTS,LTE(FDD),GU,GL,UL,GUL,LTE(NB-IoT),GM,UM,LM,GUM,GLM,ULM,GULM,NR(FDD),GN(FDD),UN(FDD),LN(FDD),GUN(FDD),GLN(FDD),ULN(FDD),MN(FDD),GMN(FDD),UMN(FDD),GUMN(FDD) | ||
| 2T2R | 1800 | GSM,LTE ((FDD),GL,LM,GLM,LN ((SUL),GLN ((SUL),NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD) | ||
| 2T2R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5909N | 2T2R | 1800 | LTE (FDD),LM,LN (SUL),NR (FDD),LN (FDD),LMN (FDD) | RRU5909N |
| RRU5909s | 2T2R | 1800 | LTE (FDD),GL,LM,GLM,LN (SUL),GLN (SUL),NR (FDD),GN (FDD),LN (FDD),GLN (FDD),LMN (FDD) | RRU5909s |
| 2T2R | 2100 | UMTS,LTE(FDD),UL,LN(SUL),ULN(SUL),NR(FDD),UN(FDD),LN(FDD),ULN(FDD | ||
| RRU5935E | 2T2R | 1800+2100 | 1800MHz:LTE ((FDD),GL,LM,GLM,NR ((FDD),GN ((FDD),LN ((FDD),GLN ((FDD),LMN ((FDD),GLMN ((FDD) | RRU5935E |
| 2100MHz: UMTS,LTE(FDD),UL,NR(FDD),UN(FDD),LN(FDD),ULN(FDD) 1800MHz+2100MHz:LTE(FDD),GL,UL,GUL,LM,GLM,ULM,GULM,NR(FDD),LN(FDD),GLN(FDD),ULN(FDD),GULN(FDD),LMN(FDD),GLMN(FDD),ULMN(FDD),GULMN(FDD) | ||||
